#include <QuadratureRuleContainer.h>

Collaboration diagram for dftefe::quadrature::QuadratureRuleContainer:

Public Member Functions
	QuadratureRuleContainer (const QuadratureRuleAttributes &quadratureRuleAttributes, std::shared_ptr< const QuadratureRule > quadratureRule, std::shared_ptr< const basis::TriangulationBase > triangulation, const basis::CellMappingBase &cellMapping)
	Constructor for assigning each cell with a common quadrature rule. More...

	QuadratureRuleContainer (const QuadratureRuleAttributes &quadratureRuleAttributes, std::vector< std::shared_ptr< const QuadratureRule > > quadratureRuleVec, std::shared_ptr< const basis::TriangulationBase > triangulation, const basis::CellMappingBase &cellMapping)
	Constructor for assigning each cell with different quadrature rule for each cell. More...

	QuadratureRuleContainer (const QuadratureRuleAttributes &quadratureRuleAttributes, std::shared_ptr< const QuadratureRule > baseQuadratureRule, std::shared_ptr< const basis::TriangulationBase > triangulation, const basis::CellMappingBase &cellMapping, basis::ParentToChildCellsManagerBase &parentToChildCellsManager, std::vector< std::shared_ptr< const utils::ScalarSpatialFunctionReal > > functions, const std::vector< double > &absoluteTolerances, const std::vector< double > &relativeTolerances, const std::vector< double > &integralThresholds, const double smallestCellVolume=QuadratureRuleAdaptiveDefaults::SMALLEST_CELL_VOLUME, const unsigned int maxRecursion=QuadratureRuleAdaptiveDefaults::MAX_RECURSION)
	Constructor for creating an adaptive quadrature rule in each cell based user-defined functions. More...

	QuadratureRuleContainer (const QuadratureRuleAttributes &quadratureRuleAttributes, const size_type order1DMin, const size_type order1DMax, const size_type copies1DMax, std::shared_ptr< const basis::TriangulationBase > triangulation, const basis::CellMappingBase &cellMapping, std::vector< std::shared_ptr< const utils::ScalarSpatialFunctionReal > > functions, const std::vector< double > &absoluteTolerances, const std::vector< double > &relativeTolerances, const quadrature::QuadratureRuleContainer &quadratureRuleContainerReference, const utils::mpi::MPIComm &comm)
	Constructor for creating a subdivided quadrature rule in each cell based user-defined functions and a reference quadrature. So one provides a minimum and maximum order (or number of 1D gauss points) and maimum number of copies of the orders one wants to go. Also one has a reference quadrature which can. More...

const QuadratureRuleAttributes &	getQuadratureRuleAttributes () const
	Returns the underlying QuadratureRuleAttributes. More...

size_type	nCells () const
	Returns the number of cells in the quadrature container. More...

const std::vector< dftefe::utils::Point > &	getRealPoints () const
	Function that returns a vector containing the real coordinates of the quad points in all cells. More...

std::vector< dftefe::utils::Point >	getCellRealPoints (const unsigned int cellId) const
	Function that returns a vector containing the real coordinates of the quad points in cell corresponding to the cellId. More...

const std::vector< dftefe::utils::Point > &	getCellParametricPoints (const unsigned int cellId) const
	Function that returns a vector containing the real coordinates of the quad points in cell corresponding to the cellId. More...

const std::vector< double > &	getCellQuadratureWeights (const unsigned int cellId) const
	Function that returns a vector containing the weight of the quad points in cell corresponding to the cellId. More...

const std::vector< double > &	getJxW () const
	Function that returns a vector containing the Jacobian times quadrature weight for all the quad points across all the cells in the triangulation. More...

std::vector< double >	getCellJxW (const unsigned int cellId) const
	Function that returns a vector containing the Jacobian times weight of the quad points in cell corresponding to the cellId. More...

const QuadratureRule &	getQuadratureRule (const unsigned int cellId) const
	Function that returns the handle to quadrature rule corresponding to the the cell Id. More...

size_type	nQuadraturePoints () const
	A function to return the total number of quadrature points in all the cells. More...

size_type	nCellQuadraturePoints (const unsigned int cellId) const
	A function to returns the number of quadrature points in cell corresponding to the the cell Id. More...

const std::vector< size_type > &	getCellQuadStartIds () const
	A function to return the starting index of the quadrature point of each cell. More...

size_type	getCellQuadStartId (const size_type cellId) const
	A function to return the starting index of the quadrature point of a given cell. More...

std::shared_ptr< const basis::TriangulationBase >	getTriangulation () const

const basis::CellMappingBase &	getCellMapping () const

Private Attributes
const QuadratureRuleAttributes &	d_quadratureRuleAttributes

std::vector< std::shared_ptr< const QuadratureRule > >	d_quadratureRuleVec

std::vector< size_type >	d_numCellQuadPoints

std::vector< size_type >	d_cellQuadStartIds

std::vector< dftefe::utils::Point >	d_realPoints

std::vector< double >	d_JxW

unsigned int	d_dim

size_type	d_numQuadPoints

size_type	d_numCells

bool	d_storeJacobianInverse

std::shared_ptr< const basis::TriangulationBase >	d_triangulation

const basis::CellMappingBase &	d_cellMapping

Detailed Description

This class stores the quadrature points and corresponding JxW in each cell. This supports adaptive quadrature i.e each cell can have different quadrature rules. Further each cell can have arbitrary quadrature rule.

Constructor & Destructor Documentation

◆ QuadratureRuleContainer() [1/4]

dftefe::quadrature::QuadratureRuleContainer::QuadratureRuleContainer	(	const QuadratureRuleAttributes &	quadratureRuleAttributes,
		std::shared_ptr< const QuadratureRule >	quadratureRule,
		std::shared_ptr< const basis::TriangulationBase >	triangulation,
		const basis::CellMappingBase &	cellMapping
	)

Constructor for assigning each cell with a common quadrature rule.

Parameters

[in]	quadratureRule	The quadrature rule specifying the quad points in the parametric coordinates with its corresponding weights.
[in]	triangulation	The triangulation that has information on the cell and its vertices
[in]	cellMapping	cellMapping provides the the information on how the cell in real space is mapped to its parametric coordinates. This is required to calculate the JxW values at each quad point

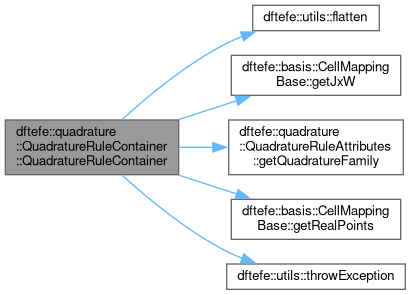

Here is the call graph for this function:

◆ QuadratureRuleContainer() [2/4]

dftefe::quadrature::QuadratureRuleContainer::QuadratureRuleContainer	(	const QuadratureRuleAttributes &	quadratureRuleAttributes,
		std::vector< std::shared_ptr< const QuadratureRule > >	quadratureRuleVec,
		std::shared_ptr< const basis::TriangulationBase >	triangulation,
		const basis::CellMappingBase &	cellMapping
	)

Constructor for assigning each cell with different quadrature rule for each cell.

Parameters

[in]	quadratureRulevec	vector of quadratureRule pointers specifying the quadrature rule for each cell
[in]	triangulation	The triangulation that has information on the cell and its vertices
[in]	cellMapping	cellMapping provides the the information on how the cell in real space is mapped to its parametric coordinates. This is required to calculate the JxW values at each quad point

Here is the call graph for this function:

◆ QuadratureRuleContainer() [3/4]

dftefe::quadrature::QuadratureRuleContainer::QuadratureRuleContainer	(	const QuadratureRuleAttributes &	quadratureRuleAttributes,
		std::shared_ptr< const QuadratureRule >	baseQuadratureRule,
		std::shared_ptr< const basis::TriangulationBase >	triangulation,
		const basis::CellMappingBase &	cellMapping,
		basis::ParentToChildCellsManagerBase &	parentToChildCellsManager,
		std::vector< std::shared_ptr< const utils::ScalarSpatialFunctionReal > >	functions,
		const std::vector< double > &	absoluteTolerances,
		const std::vector< double > &	relativeTolerances,
		const std::vector< double > &	integralThresholds,
		const double	smallestCellVolume = `QuadratureRuleAdaptiveDefaults::SMALLEST_CELL_VOLUME`,
		const unsigned int	maxRecursion = `QuadratureRuleAdaptiveDefaults::MAX_RECURSION`
	)

Constructor for creating an adaptive quadrature rule in each cell based user-defined functions.

Parameters

[in]	baseQuadratureRule	The base quadrature rule to be used in constructing the adaptive quadrature rule
[in]	triangulation	The triangulation that has information on the cell and its vertices
[in]	cellMapping	cellMapping object that provides the the information on how the cell in real space is mapped to its parametric coordinates. This is required to calculate the JxW values at each quad point

std::cout << "Function Eval in recursiveIntegrate function: " << timer["Function Eval"] / 1e6 << "\n" << std::flush; std::cout << "Child Cell Creation in recursiveIntegrate function: " << timer["Child Cell Creation"] / 1e6 << "\n" << std::flush; std::cout << "Cell Mapping to get jxw in recursiveIntegrate function: " << timer["Cell Mapping jxw"] / 1e6 << "\n" << std::flush; std::cout << "Cell Mapping to get real pts in recursiveIntegrate function: " << timer["Cell Mapping real"] / 1e6 << "\n" << std::flush;

Here is the call graph for this function:

◆ QuadratureRuleContainer() [4/4]

dftefe::quadrature::QuadratureRuleContainer::QuadratureRuleContainer	(	const QuadratureRuleAttributes &	quadratureRuleAttributes,
		const size_type	order1DMin,
		const size_type	order1DMax,
		const size_type	copies1DMax,
		std::shared_ptr< const basis::TriangulationBase >	triangulation,
		const basis::CellMappingBase &	cellMapping,
		std::vector< std::shared_ptr< const utils::ScalarSpatialFunctionReal > >	functions,
		const std::vector< double > &	absoluteTolerances,
		const std::vector< double > &	relativeTolerances,
		const quadrature::QuadratureRuleContainer &	quadratureRuleContainerReference,
		const utils::mpi::MPIComm &	comm
	)

Constructor for creating a subdivided quadrature rule in each cell based user-defined functions and a reference quadrature. So one provides a minimum and maximum order (or number of 1D gauss points) and maimum number of copies of the orders one wants to go. Also one has a reference quadrature which can.

either be constructed from highly refined tensor structures of GAUSS or GLL. from spatally variable quadrature rules like GAUSS_VARIABLE, GLL_VARIABLE, or ADAPTIVE. Care should be taken that for ADAPTIVE it is assumed that the quadrature is optimal and hence only cells with high quadrature density are traversed. Whereas for all others all the cells are traversed. Then the {order, copy} pair with minimum quad points per cell is chosen. Then again the maximum of this points over all processors are taken. In one statement the condition can be written as sup_{processors} inf_{all pairs in a processor} (QuadPoints in Cells statisfing the given tolerances w.r.t. the reference quadrature)

Parameters

[in]	order1DMin	The minimum gauss 1D number of points from which to start
[in]	order1DMax	The maximum gauss 1D number of points upto which to iterate
[in]	copies1DMax	The maimum number of copies (starting from 1) to be done at each iteration of order.
[in]	triangulation	The triangulation that has information on the cell and its vertices
[in]	cellMapping	cellMapping object that provides the the information on how the cell in real space is mapped to its parametric coordinates. This is required to calculate the JxW values at each quad point

Here is the call graph for this function:

Member Function Documentation

◆ getCellJxW()

std::vector< double > dftefe::quadrature::QuadratureRuleContainer::getCellJxW ( const unsigned int cellId ) const

Function that returns a vector containing the Jacobian times weight of the quad points in cell corresponding to the cellId.

Parameters

[in] cellId the id to the cell

Returns: a vector (double) of Jacobian times weight

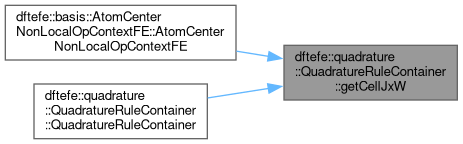

Here is the caller graph for this function:

◆ getCellMapping()

const basis::CellMappingBase & dftefe::quadrature::QuadratureRuleContainer::getCellMapping ( ) const

Here is the caller graph for this function:

◆ getCellParametricPoints()

const std::vector< dftefe::utils::Point > & dftefe::quadrature::QuadratureRuleContainer::getCellParametricPoints ( const unsigned int cellId ) const

Function that returns a vector containing the real coordinates of the quad points in cell corresponding to the cellId.

Parameters

[in] cellId the id to the cell

Returns: a vector of dftefe::utils::Point

Here is the caller graph for this function:

◆ getCellQuadratureWeights()

const std::vector< double > & dftefe::quadrature::QuadratureRuleContainer::getCellQuadratureWeights ( const unsigned int cellId ) const

Function that returns a vector containing the weight of the quad points in cell corresponding to the cellId.

Parameters

[in] cellId the id to the cell

Returns: a vector of weights double

Here is the caller graph for this function:

◆ getCellQuadStartId()

size_type dftefe::quadrature::QuadratureRuleContainer::getCellQuadStartId ( const size_type cellId ) const

A function to return the starting index of the quadrature point of a given cell.

Parameters

[in] cellId index of the cell

Returns: the starting index of the quadrature point of the cell

◆ getCellQuadStartIds()

const std::vector< size_type > & dftefe::quadrature::QuadratureRuleContainer::getCellQuadStartIds ( ) const

A function to return the starting index of the quadrature point of each cell.

Returns: vector storing the starting index of the quadrature point of each cell

◆ getCellRealPoints()

std::vector< dftefe::utils::Point > dftefe::quadrature::QuadratureRuleContainer::getCellRealPoints ( const unsigned int cellId ) const

Function that returns a vector containing the real coordinates of the quad points in cell corresponding to the cellId.

Parameters

[in] cellId the id to the cell

Returns: a vector of dftefe::utils::Point

◆ getJxW()

const std::vector< double > & dftefe::quadrature::QuadratureRuleContainer::getJxW ( ) const

Function that returns a vector containing the Jacobian times quadrature weight for all the quad points across all the cells in the triangulation.

Returns: vectors of Jacobian times quadrature weight

Here is the caller graph for this function:

◆ getQuadratureRule()

const QuadratureRule & dftefe::quadrature::QuadratureRuleContainer::getQuadratureRule ( const unsigned int cellId ) const

Function that returns the handle to quadrature rule corresponding to the the cell Id.

Parameters

[in] cellId the id to the cell

Returns: Const reference to QuadratureRule

◆ getQuadratureRuleAttributes()

const QuadratureRuleAttributes & dftefe::quadrature::QuadratureRuleContainer::getQuadratureRuleAttributes ( ) const

Returns the underlying QuadratureRuleAttributes.

Returns: const reference to the QuadratureAttributes

Here is the caller graph for this function:

◆ getRealPoints()

const std::vector< dftefe::utils::Point > & dftefe::quadrature::QuadratureRuleContainer::getRealPoints ( ) const

Function that returns a vector containing the real coordinates of the quad points in all cells.

Returns: a vector of dftefe::utils::Point

Here is the caller graph for this function:

◆ getTriangulation()

std::shared_ptr< const basis::TriangulationBase > dftefe::quadrature::QuadratureRuleContainer::getTriangulation ( ) const

Here is the caller graph for this function:

◆ nCellQuadraturePoints()

size_type dftefe::quadrature::QuadratureRuleContainer::nCellQuadraturePoints ( const unsigned int cellId ) const

A function to returns the number of quadrature points in cell corresponding to the the cell Id.

Parameters

[in] cellId the id to the cell

Returns: number of quadrature points

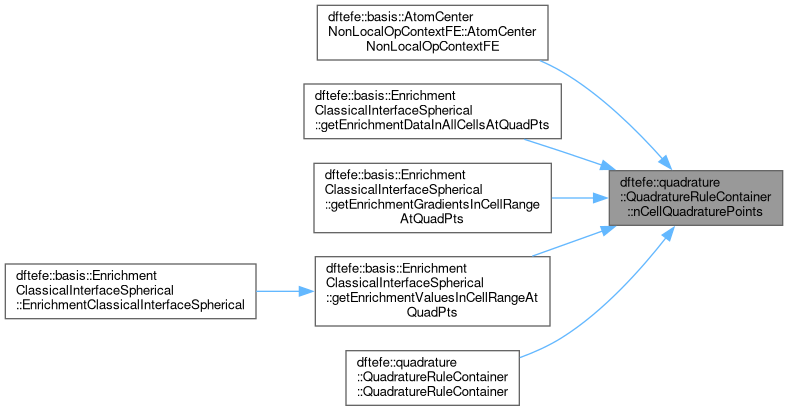

Here is the caller graph for this function:

◆ nCells()

size_type dftefe::quadrature::QuadratureRuleContainer::nCells ( ) const

Returns the number of cells in the quadrature container.

Returns: number of cells in the quadrature container

◆ nQuadraturePoints()

size_type dftefe::quadrature::QuadratureRuleContainer::nQuadraturePoints ( ) const

A function to return the total number of quadrature points in all the cells.

Returns: the number of quadrature points in all the cells

Here is the caller graph for this function:

Member Data Documentation

◆ d_cellMapping

const basis::CellMappingBase& dftefe::quadrature::QuadratureRuleContainer::d_cellMapping

private

◆ d_cellQuadStartIds

std::vector<size_type> dftefe::quadrature::QuadratureRuleContainer::d_cellQuadStartIds

private

◆ d_dim

unsigned int dftefe::quadrature::QuadratureRuleContainer::d_dim

private

◆ d_JxW

std::vector<double> dftefe::quadrature::QuadratureRuleContainer::d_JxW

private

◆ d_numCellQuadPoints

std::vector<size_type> dftefe::quadrature::QuadratureRuleContainer::d_numCellQuadPoints

private

◆ d_numCells

size_type dftefe::quadrature::QuadratureRuleContainer::d_numCells

private

◆ d_numQuadPoints

size_type dftefe::quadrature::QuadratureRuleContainer::d_numQuadPoints

private

◆ d_quadratureRuleAttributes

const QuadratureRuleAttributes& dftefe::quadrature::QuadratureRuleContainer::d_quadratureRuleAttributes

private

◆ d_quadratureRuleVec

std::vector<std::shared_ptr<const QuadratureRule> > dftefe::quadrature::QuadratureRuleContainer::d_quadratureRuleVec

private

◆ d_realPoints

std::vector<dftefe::utils::Point> dftefe::quadrature::QuadratureRuleContainer::d_realPoints

private

◆ d_storeJacobianInverse

bool dftefe::quadrature::QuadratureRuleContainer::d_storeJacobianInverse

private

◆ d_triangulation

std::shared_ptr<const basis::TriangulationBase> dftefe::quadrature::QuadratureRuleContainer::d_triangulation

private

The documentation for this class was generated from the following files:

src/quadrature/QuadratureRuleContainer.h
src/quadrature/QuadratureRuleContainer.cpp

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ QuadratureRuleContainer() [1/4]

◆ QuadratureRuleContainer() [2/4]

◆ QuadratureRuleContainer() [3/4]

◆ QuadratureRuleContainer() [4/4]

Member Function Documentation

◆ getCellJxW()

◆ getCellMapping()

◆ getCellParametricPoints()

◆ getCellQuadratureWeights()

◆ getCellQuadStartId()

◆ getCellQuadStartIds()

◆ getCellRealPoints()

◆ getJxW()

◆ getQuadratureRule()

◆ getQuadratureRuleAttributes()

◆ getRealPoints()

◆ getTriangulation()

◆ nCellQuadraturePoints()

◆ nCells()

◆ nQuadraturePoints()

Member Data Documentation

◆ d_cellMapping

◆ d_cellQuadStartIds

◆ d_dim

◆ d_JxW

◆ d_numCellQuadPoints

◆ d_numCells

◆ d_numQuadPoints

◆ d_quadratureRuleAttributes

◆ d_quadratureRuleVec

◆ d_realPoints

◆ d_storeJacobianInverse

◆ d_triangulation
