#include <DealiiFEEvaluationWrapper.h>

Inheritance diagram for dftefe::basis::FEEvaluationWrapperBase:

Public Types
template<typename T >
using	distributedCPUVec = dealii::LinearAlgebra::distributed::Vector< T, dealii::MemorySpace::Host >

Public Member Functions
virtual	~FEEvaluationWrapperBase ()=0

virtual unsigned int	totalNumberofQuadraturePoints ()=0
	Returns the total number of quadrature points in all 3 directions. More...

virtual void	reinit (const unsigned int macrocell)=0
	reinits the dealii::FEEvaluation object for the macrocellIndex More...

virtual void	readDoFValues (const distributedCPUVec< double > &tempvec)=0
	Calls dealii::FEEvaluation::read_dof_values. More...

virtual void	readDoFValuesPlain (const distributedCPUVec< double > &tempvec)=0
	Calls dealii::FEEvaluation::read_dofs_values_plain. More...

virtual void	evaluate (dealii::EvaluationFlags::EvaluationFlags evaluateFlags)=0
	Calls the dealii::FEEvaluation::evaluate. More...

virtual void	submitInterpolatedGradientsAndMultiply (dealii::VectorizedArray< double > &alpha)=0

virtual void	submitInterpolatedValuesAndMultiply (dealii::VectorizedArray< double > &alpha)=0

virtual void	submitInterpolatedValuesAndMultiplySquared ()=0

virtual void	submitInterpolatedValuesAndMultiply (dealii::AlignedVector< dealii::VectorizedArray< double > > &alpha)=0

virtual void	submitValues (const dealii::VectorizedArray< double > &scaling, dealii::AlignedVector< dealii::Tensor< 1, 3, dealii::VectorizedArray< double > > > &alpha)=0

virtual void	submitGradients (dealii::AlignedVector< dealii::Tensor< 1, 3, dealii::VectorizedArray< double > > > &alpha)=0

virtual void	submitValues (dealii::AlignedVector< dealii::VectorizedArray< double > > &alpha)=0

virtual dealii::VectorizedArray< double >	integrateValue ()=0

virtual void	submitValueAtQuadpoint (const unsigned int iQuadPoint, const dealii::VectorizedArray< double > &value)=0

virtual void	alphaTimesQuadValuesPlusYFromSubCell (const unsigned int subCellIndex, const double alpha, double *outputVector)=0

virtual void	getQuadGradientsForSubCell (const unsigned int subCellIndex, const double alpha, double *outputVector)=0

virtual void	getQuadHessianForSubCell (const unsigned int subCellIndex, const double alpha, double *outputVector)=0

virtual void	submitInterpolatedValuesSubmitInterpolatedGradients (const dealii::VectorizedArray< double > &scaleValues, const bool scaleValuesFlag, const dealii::VectorizedArray< double > &scaleGradients, const bool scaleGradientsFlag)=0

virtual void	integrate (dealii::EvaluationFlags::EvaluationFlags evaluateFlags)=0

virtual dealii::Point< 3, dealii::VectorizedArray< double > >	getQuadraturePoint (const unsigned int iQuadPoint)=0

virtual void	getValues (dealii::AlignedVector< dealii::VectorizedArray< double > > &tempVec)=0

virtual void	distributeLocalToGlobal (distributedCPUVec< double > &tempvec)=0

Member Typedef Documentation

◆ distributedCPUVec

template<typename T >

using dftefe::basis::FEEvaluationWrapperBase::distributedCPUVec = dealii::LinearAlgebra::distributed::Vector<T, dealii::MemorySpace::Host>

Constructor & Destructor Documentation

◆ ~FEEvaluationWrapperBase()

dftefe::basis::FEEvaluationWrapperBase::~FEEvaluationWrapperBase ( )

pure virtual

Member Function Documentation

◆ alphaTimesQuadValuesPlusYFromSubCell()

virtual void dftefe::basis::FEEvaluationWrapperBase::alphaTimesQuadValuesPlusYFromSubCell	(	const unsigned int	subCellIndex,
		const double	alpha,
		double *	outputVector
	)

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ distributeLocalToGlobal()

virtual void dftefe::basis::FEEvaluationWrapperBase::distributeLocalToGlobal ( distributedCPUVec< double > & tempvec )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ evaluate()

virtual void dftefe::basis::FEEvaluationWrapperBase::evaluate ( dealii::EvaluationFlags::EvaluationFlags evaluateFlags )

pure virtual

Calls the dealii::FEEvaluation::evaluate.

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ getQuadGradientsForSubCell()

virtual void dftefe::basis::FEEvaluationWrapperBase::getQuadGradientsForSubCell	(	const unsigned int	subCellIndex,
		const double	alpha,
		double *	outputVector
	)

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ getQuadHessianForSubCell()

virtual void dftefe::basis::FEEvaluationWrapperBase::getQuadHessianForSubCell	(	const unsigned int	subCellIndex,
		const double	alpha,
		double *	outputVector
	)

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ getQuadraturePoint()

virtual dealii::Point< 3, dealii::VectorizedArray< double > > dftefe::basis::FEEvaluationWrapperBase::getQuadraturePoint ( const unsigned int iQuadPoint )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ getValues()

virtual void dftefe::basis::FEEvaluationWrapperBase::getValues ( dealii::AlignedVector< dealii::VectorizedArray< double > > & tempVec )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ integrate()

virtual void dftefe::basis::FEEvaluationWrapperBase::integrate ( dealii::EvaluationFlags::EvaluationFlags evaluateFlags )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ integrateValue()

virtual dealii::VectorizedArray< double > dftefe::basis::FEEvaluationWrapperBase::integrateValue ( )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ readDoFValues()

virtual void dftefe::basis::FEEvaluationWrapperBase::readDoFValues ( const distributedCPUVec< double > & tempvec )

pure virtual

Calls dealii::FEEvaluation::read_dof_values.

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ readDoFValuesPlain()

virtual void dftefe::basis::FEEvaluationWrapperBase::readDoFValuesPlain ( const distributedCPUVec< double > & tempvec )

pure virtual

Calls dealii::FEEvaluation::read_dofs_values_plain.

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ reinit()

virtual void dftefe::basis::FEEvaluationWrapperBase::reinit ( const unsigned int macrocell )

pure virtual

reinits the dealii::FEEvaluation object for the macrocellIndex

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

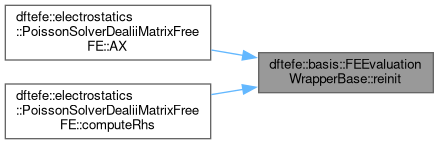

Here is the caller graph for this function:

◆ submitGradients()

virtual void dftefe::basis::FEEvaluationWrapperBase::submitGradients ( dealii::AlignedVector< dealii::Tensor< 1, 3, dealii::VectorizedArray< double > > > & alpha )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ submitInterpolatedGradientsAndMultiply()

virtual void dftefe::basis::FEEvaluationWrapperBase::submitInterpolatedGradientsAndMultiply ( dealii::VectorizedArray< double > & alpha )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ submitInterpolatedValuesAndMultiply() [1/2]

virtual void dftefe::basis::FEEvaluationWrapperBase::submitInterpolatedValuesAndMultiply ( dealii::AlignedVector< dealii::VectorizedArray< double > > & alpha )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ submitInterpolatedValuesAndMultiply() [2/2]

virtual void dftefe::basis::FEEvaluationWrapperBase::submitInterpolatedValuesAndMultiply ( dealii::VectorizedArray< double > & alpha )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ submitInterpolatedValuesAndMultiplySquared()

virtual void dftefe::basis::FEEvaluationWrapperBase::submitInterpolatedValuesAndMultiplySquared ( )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ submitInterpolatedValuesSubmitInterpolatedGradients()

virtual void dftefe::basis::FEEvaluationWrapperBase::submitInterpolatedValuesSubmitInterpolatedGradients	(	const dealii::VectorizedArray< double > &	scaleValues,
		const bool	scaleValuesFlag,
		const dealii::VectorizedArray< double > &	scaleGradients,
		const bool	scaleGradientsFlag
	)

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ submitValueAtQuadpoint()

virtual void dftefe::basis::FEEvaluationWrapperBase::submitValueAtQuadpoint	(	const unsigned int	iQuadPoint,
		const dealii::VectorizedArray< double > &	value
	)

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ submitValues() [1/2]

virtual void dftefe::basis::FEEvaluationWrapperBase::submitValues	(	const dealii::VectorizedArray< double > &	scaling,
		dealii::AlignedVector< dealii::Tensor< 1, 3, dealii::VectorizedArray< double > > > &	alpha
	)

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

◆ submitValues() [2/2]

virtual void dftefe::basis::FEEvaluationWrapperBase::submitValues ( dealii::AlignedVector< dealii::VectorizedArray< double > > & alpha )

pure virtual

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

◆ totalNumberofQuadraturePoints()

virtual unsigned int dftefe::basis::FEEvaluationWrapperBase::totalNumberofQuadraturePoints ( )

pure virtual

Returns the total number of quadrature points in all 3 directions.

Implemented in dftefe::basis::FEEvaluationWrapperDerived< FEOrder, num_1d_quadPoints, n_components >.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/basis/DealiiFEEvaluationWrapper.h
src/basis/DealiiFEEvaluationWrapper.cpp
