#include <FEBasisOperations.h>

Inheritance diagram for dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >:

Collaboration diagram for dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >:

[legend]

Public Types
using	ValueTypeUnion = typename BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >::ValueTypeUnion

using	StorageUnion = typename BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >::StorageUnion

using	StorageBasis = typename BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >::StorageBasis

Public Types inherited from dftefe::basis::BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >
using	ValueTypeUnion = linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >

using	StorageBasis = dftefe::utils::MemoryStorage< ValueTypeBasisData, memorySpace >

using	StorageUnion = dftefe::utils::MemoryStorage< ValueTypeUnion, memorySpace >

Public Member Functions
	FEBasisOperations (std::shared_ptr< const BasisDataStorage< ValueTypeBasisData, memorySpace > > basisDataStorage, const size_type maxCellBlockSize, const size_type maxFieldBlockSize=0)

void	reinit (const size_type maxCellBlockSize, const size_type maxFieldBlockSize=0)

	~FEBasisOperations ()=default

void	interpolate (const Field< ValueTypeBasisCoeff, memorySpace > &field, quadrature::QuadratureValuesContainer< ValueTypeUnion, memorySpace > &quadValuesContainer) const override

void	interpolate (const linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &vectorData, const BasisManager< ValueTypeBasisCoeff, memorySpace > &basisManager, quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &quadValuesContainer) const override

void	interpolateWithBasisGradient (const linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &vectorData, const BasisManager< ValueTypeBasisCoeff, memorySpace > &basisManager, quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &quadValuesContainer) const override

void	integrateWithBasisValues (const quadrature::QuadratureValuesContainer< ValueTypeUnion, memorySpace > &inp, Field< ValueTypeBasisCoeff, memorySpace > &f) const override

void	integrateWithBasisValues (const quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &inp, const BasisManager< ValueTypeBasisCoeff, memorySpace > &basisManager, linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &vectorData) const override

void	computeFEMatrices (realspace::LinearLocalOp L1, realspace::VectorMathOp Op1, realspace::VectorMathOp L2, realspace::LinearLocalOp Op2, const quadrature::QuadratureValuesContainer< ValueTypeUnion, memorySpace > &f, StorageUnion &cellWiseFEData, linearAlgebra::LinAlgOpContext< memorySpace > &linAlgOpContext) const

void	computeFEMatrices (realspace::LinearLocalOp L1, realspace::VectorMathOp Op1, realspace::LinearLocalOp L2, StorageBasis &cellWiseFEData, linearAlgebra::LinAlgOpContext< memorySpace > &linAlgOpContext) const

Public Member Functions inherited from dftefe::basis::BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >
virtual	~BasisOperations ()=default

virtual void	interpolate (const Field< ValueTypeBasisCoeff, memorySpace > &field, quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &quadValuesContainer) const =0

virtual void	interpolate (const linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &vectorData, const BasisManager< ValueTypeBasisCoeff, memorySpace > &basisManager, quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &quadValuesContainer) const =0

virtual void	interpolateWithBasisGradient (const linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &vectorData, const BasisManager< ValueTypeBasisCoeff, memorySpace > &basisManager, quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &quadValuesContainer) const =0

virtual void	integrateWithBasisValues (const quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &inp, Field< ValueTypeBasisCoeff, memorySpace > &f) const =0

virtual void	integrateWithBasisValues (const quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &inp, const BasisManager< ValueTypeBasisCoeff, memorySpace > &basisManager, linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &vectorData) const =0

Private Attributes
std::shared_ptr< const FEBasisDataStorage< ValueTypeBasisData, memorySpace > >	d_feBasisDataStorage

size_type	d_maxCellBlock

size_type	d_maxFieldBlock

utils::MemoryStorage< ValueTypeBasisCoeff, memorySpace >	d_tmpFieldCellValues

utils::MemoryStorage< ValueTypeBasisCoeff, memorySpace >	d_tmpCellMatrixBlock

utils::MemoryStorage< ValueTypeBasisCoeff, memorySpace >	d_tmpJxWxVecN

utils::MemoryStorage< ValueTypeBasisCoeff, memorySpace >	d_tmpJxWxScalN

utils::MemoryStorage< ValueTypeBasisCoeff, memorySpace >	d_tmpFieldxVecN

utils::MemoryStorage< ValueTypeBasisCoeff, memorySpace >	d_tmpFieldxScalN

utils::MemoryStorage< ValueTypeBasisData, memorySpace >	d_tmpCellGradientsBlock

utils::MemoryStorage< ValueTypeBasisData, memorySpace >	d_tmpCellValuesBlock

Detailed Description

template<typename ValueTypeBasisCoeff, typename ValueTypeBasisData, utils::MemorySpace memorySpace, size_type dim>
class dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >

An abstract class to handle interactions between a basis and a field (e.g., integration of field with basis).

Member Typedef Documentation

◆ StorageBasis

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

using dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::StorageBasis = typename BasisOperations<ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace>::StorageBasis

◆ StorageUnion

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

using dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::StorageUnion = typename BasisOperations<ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace>::StorageUnion

◆ ValueTypeUnion

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

using dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::ValueTypeUnion = typename BasisOperations<ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace>::ValueTypeUnion

Constructor & Destructor Documentation

◆ FEBasisOperations()

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::FEBasisOperations	(	std::shared_ptr< const BasisDataStorage< ValueTypeBasisData, memorySpace > >	basisDataStorage,
		const size_type	maxCellBlockSize,
		const size_type	maxFieldBlockSize = `0`
	)

Here is the call graph for this function:

◆ ~FEBasisOperations()

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::~FEBasisOperations ( )

default

Member Function Documentation

◆ computeFEMatrices() [1/2]

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::computeFEMatrices	(	realspace::LinearLocalOp	L1,
		realspace::VectorMathOp	Op1,
		realspace::LinearLocalOp	L2,
		StorageBasis &	cellWiseFEData,
		linearAlgebra::LinAlgOpContext< memorySpace > &	linAlgOpContext
	)		const

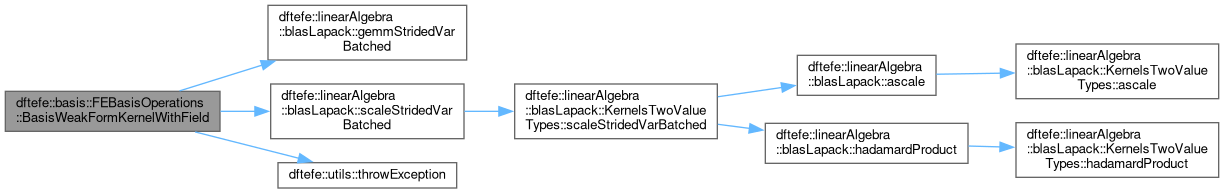

Here is the call graph for this function:

◆ computeFEMatrices() [2/2]

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::computeFEMatrices	(	realspace::LinearLocalOp	L1,
		realspace::VectorMathOp	Op1,
		realspace::VectorMathOp	L2,
		realspace::LinearLocalOp	Op2,
		const quadrature::QuadratureValuesContainer< ValueTypeUnion, memorySpace > &	f,
		StorageUnion &	cellWiseFEData,
		linearAlgebra::LinAlgOpContext< memorySpace > &	linAlgOpContext
	)		const

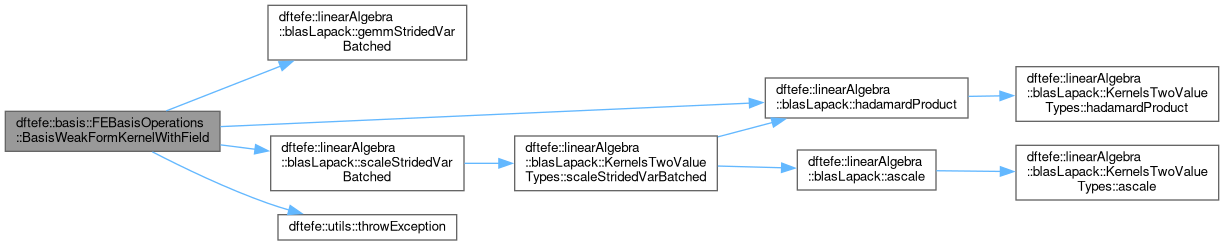

Here is the call graph for this function:

◆ integrateWithBasisValues() [1/2]

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::integrateWithBasisValues	(	const quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &	inp,
		const BasisManager< ValueTypeBasisCoeff, memorySpace > &	basisManager,
		linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &	vectorData
	)		const

overridevirtual

— Storages ------—

Blocked Hadamard product for inp and JxW linearAlgebra::blasLapack::blockedHadamardProduct( numCumulativeQuadCellsInBlock, numComponents, inp.begin(cellStartId), jxwStorage.data() + quadRuleContainer->getCellQuadStartId(cellStartId), inpJxW.data(), linAlgOpContext);

Implements dftefe::basis::BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >.

Here is the call graph for this function:

◆ integrateWithBasisValues() [2/2]

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::integrateWithBasisValues	(	const quadrature::QuadratureValuesContainer< ValueTypeUnion, memorySpace > &	inp,
		Field< ValueTypeBasisCoeff, memorySpace > &	f
	)		const

override

    template <typename ValueTypeBasisCoeff,
              typename ValueTypeBasisData,
              utils::MemorySpace memorySpace,
              size_type          dim>
    void
    FEBasisOperations<ValueTypeBasisCoeff,
                      ValueTypeBasisData,
                      memorySpace,
                      dim>::
      interpolateWithBasisGradient(
        const linearAlgebra::MultiVector<ValueTypeBasisCoeff, memorySpace>
          &                                                   vectorData,
        const BasisManager<ValueTypeBasisCoeff, memorySpace> &basisManager,
        std::vector<quadrature::QuadratureValuesContainer<
          linearAlgebra::blasLapack::scalar_type<ValueTypeBasisCoeff,
                                                 ValueTypeBasisData>,
          memorySpace>> &quadValuesContainerVec) const

    {
      quadrature::QuadratureRuleAttributes quadratureRuleAttributes =
        d_feBasisDataStorage->getQuadratureRuleContainer()
          ->getQuadratureRuleAttributes();
      const FEBasisManager<ValueTypeBasisCoeff,
                           ValueTypeBasisData,
                           memorySpace,
                           dim> &feBasisManager =
        dynamic_cast<const FEBasisManager<ValueTypeBasisCoeff,
                                          ValueTypeBasisData,
                                          memorySpace,
                                          dim> &>(basisManager);
      utils::throwException(
        &feBasisManager != nullptr,
        "Could not cast BasisManager of the input vector to FEBasisManager
in " "FEBasisOperations.interpolate()");

      const BasisDofHandler &basisDofHandler =
        basisManager.getBasisDofHandler();

      const FEBasisDofHandler<ValueTypeBasisCoeff, memorySpace, dim>
        &feBasisDofHandler = dynamic_cast<
          const FEBasisDofHandler<ValueTypeBasisCoeff, memorySpace, dim> &>(
          basisDofHandler);
      utils::throwException(
        &feBasisDofHandler != nullptr,
        "Could not cast BasisDofHandler of the input vector to
FEBasisDofHandler " "in FEBasisOperations.interpolate()");

      const size_type numComponents = vectorData.getNumberComponents();
      const size_type numLocallyOwnedCells =
        feBasisManager.nLocallyOwnedCells();
      const size_type numCumulativeLocallyOwnedCellDofs =
        feBasisManager.nCumulativeLocallyOwnedCellDofs();
      auto itCellLocalIdsBegin =
        feBasisManager.locallyOwnedCellLocalDofIdsBegin();

reinit the quadValuesContainerVec

      utils::throwException(
        dim == quadValuesContainerVec.size(),
        "The dim do not match with that of size of quadValuesContainerVec");
      for (auto &i : quadValuesContainerVec)
        {
          utils::throwException(
            quadratureRuleAttributes ==
              i.getQuadratureRuleContainer()->getQuadratureRuleAttributes(),
            "The quadRuleAttributes do not match with that in the input
quadValuesContainer"); utils::throwException( numComponents ==
i.getNumberComponents(), "The number of components of input vector do not
match with that in the input quadValuesContainer");
        }

      std::shared_ptr<const quadrature::QuadratureRuleContainer>
        quadRuleContainer =
d_feBasisDataStorage->getQuadratureRuleContainer(); for (auto &i :
quadValuesContainerVec)
        {
          i.reinit(quadRuleContainer, numComponents, ValueTypeUnion());
        }

      const quadrature::QuadratureFamily quadratureFamily =
        quadratureRuleAttributes.getQuadratureFamily();

      std::vector<size_type> numCellDofs(numLocallyOwnedCells, 0);
      std::vector<size_type> numCellQuad(numLocallyOwnedCells, 0);
      for (size_type iCell = 0; iCell < numLocallyOwnedCells; ++iCell)
        {
          numCellDofs[iCell] = feBasisManager.nLocallyOwnedCellDofs(iCell);
          numCellQuad[iCell] =
quadRuleContainer->nCellQuadraturePoints(iCell);
        }

Perform Ce = Ae*Be, where Ce_ij = interpolated value of the i-th component at j-th quad point in e-th cell Ae_ik = i-th vector components at k-th basis function of e-th cell Be_kj = k-th basis function gradient value at j-th quad point in e-th cell

For better performance, we evaluate Ce for multiple cells at a time

Note

: The Be matrix is stored with the quad point as the fastest index. That is Be_kj (k-th basis function value at j-th quad point in e-th cell) is stored in a row-major format. Instead of copying it to a column major format (which is assumed native format for Blas/Lapack data), we use the transpose of Be matrix. That is, we perform Ce = Ae*(Be)^T, with Be stored in row major format

      size_type              cellLocalIdsOffset = 0;
      std::vector<size_type> BStartOffset(dim, 0);
      for (size_type iDim = 0; iDim < dim; iDim++)
        BStartOffset[iDim] =
          numCellDofs[0] * quadRuleContainer->nCellQuadraturePoints(0) *
iDim; size_type       quadValueContainerStartOffset = 0; const size_type
cellBlockSize = d_maxCellBlock; for (size_type
cellStartId = 0; cellStartId < numLocallyOwnedCells; cellStartId +=
cellBlockSize)
        {
          const size_type cellEndId =
            std::min(cellStartId + cellBlockSize, numLocallyOwnedCells);
          const size_type        numCellsInBlock = cellEndId - cellStartId;
          std::vector<size_type> numCellsInBlockDofs(numCellsInBlock, 0);
          std::copy(numCellDofs.begin() + cellStartId,
                    numCellDofs.begin() + cellEndId,
                    numCellsInBlockDofs.begin());

          const size_type numCumulativeDofsCellsInBlock =
            std::accumulate(numCellsInBlockDofs.begin(),
                            numCellsInBlockDofs.end(),
                            0);
          utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace>
            fieldCellValues(numCumulativeDofsCellsInBlock * numComponents);

          utils::MemoryTransfer<memorySpace, utils::MemorySpace::HOST>
            memoryTransfer;

          utils::MemoryStorage<size_type, memorySpace>
            numCellsInBlockDofsMemSpace(numCellsInBlock);
          memoryTransfer.copy(numCellsInBlock,
                              numCellsInBlockDofsMemSpace.data(),
                              numCellsInBlockDofs.data());
          FECellWiseDataOperations<ValueTypeBasisCoeff, memorySpace>::
            copyFieldToCellWiseData(vectorData.begin(),
                                    numComponents,
                                    itCellLocalIdsBegin +
cellLocalIdsOffset, numCellsInBlockDofsMemSpace, fieldCellValues);

          std::vector<char> transA(
            numCellsInBlock, 'N');
          std::vector<char> transB(
            numCellsInBlock, 'T');
          std::vector<size_type> mSizesTmp(numCellsInBlock, 0);
          std::vector<size_type> nSizesTmp(numCellsInBlock, 0);
          std::vector<size_type> kSizesTmp(numCellsInBlock, 0);
          std::vector<size_type> ldaSizesTmp(numCellsInBlock, 0);
          std::vector<size_type> ldbSizesTmp(numCellsInBlock, 0);
          std::vector<size_type> ldcSizesTmp(numCellsInBlock, 0);
          std::vector<size_type> strideATmp(numCellsInBlock, 0);
          std::vector<size_type> strideBTmp(numCellsInBlock, 0);
          std::vector<size_type> strideCTmp(numCellsInBlock, 0);

          for (size_type iCell = 0; iCell < numCellsInBlock; ++iCell)
            {
              const size_type cellId = cellStartId + iCell;
              mSizesTmp[iCell]       = numComponents;
              nSizesTmp[iCell] =
                quadRuleContainer->nCellQuadraturePoints(cellId);
              kSizesTmp[iCell]   = numCellsInBlockDofs[iCell];
              ldaSizesTmp[iCell] = mSizesTmp[iCell];
              ldbSizesTmp[iCell] = nSizesTmp[iCell];
              ldcSizesTmp[iCell] = mSizesTmp[iCell];
              strideATmp[iCell]  = mSizesTmp[iCell] * kSizesTmp[iCell];
              strideCTmp[iCell]  = mSizesTmp[iCell] * nSizesTmp[iCell];
              strideBTmp[iCell]  = kSizesTmp[iCell] * nSizesTmp[iCell] *
dim;
            }

          utils::MemoryStorage<size_type, memorySpace>
mSizes(numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
nSizes(numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
kSizes(numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
ldaSizes( numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
ldbSizes( numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
ldcSizes( numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
strideA(numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
strideB(numCellsInBlock); utils::MemoryStorage<size_type, memorySpace>
strideC(numCellsInBlock); memoryTransfer.copy(numCellsInBlock,
mSizes.data(), mSizesTmp.data()); memoryTransfer.copy(numCellsInBlock,
nSizes.data(), nSizesTmp.data()); memoryTransfer.copy(numCellsInBlock,
kSizes.data(), kSizesTmp.data()); memoryTransfer.copy(numCellsInBlock,
                              ldaSizes.data(),
                              ldaSizesTmp.data());
          memoryTransfer.copy(numCellsInBlock,
                              ldbSizes.data(),
                              ldbSizesTmp.data());
          memoryTransfer.copy(numCellsInBlock,
                              ldcSizes.data(),
                              ldcSizesTmp.data());
          memoryTransfer.copy(numCellsInBlock,
                              strideA.data(),
                              strideATmp.data());
          memoryTransfer.copy(numCellsInBlock,
                              strideB.data(),
                              strideBTmp.data());
          memoryTransfer.copy(numCellsInBlock,
                              strideC.data(),
                              strideCTmp.data());

          ValueTypeUnion                               alpha = 1.0;
          ValueTypeUnion                               beta  = 0.0;
          linearAlgebra::LinAlgOpContext<memorySpace> &linAlgOpContext =
             (vectorData.getLinAlgOpContext().get());

          std::vector<size_type> numCellsInBlockQuad(numCellsInBlock, 0);
          std::copy(numCellQuad.begin() + cellStartId,
                    numCellQuad.begin() + cellEndId,
                    numCellsInBlockQuad.begin());

          const size_type numCumulativeQuadCellsInBlock =
            std::accumulate(numCellsInBlockQuad.begin(),
                            numCellsInBlockQuad.end(),
                            0);

          for (size_type iDim = 0; iDim < dim; iDim++)
            {
              const ValueTypeBasisData *B =
                (d_feBasisDataStorage->getBasisGradientDataInAllCells())
                  .begin() +
                BStartOffset[iDim];

              ValueTypeUnion *C = quadValuesContainerVec[iDim].begin() +
                                  quadValueContainerStartOffset;
              linearAlgebra::blasLapack::gemmStridedVarBatched<
                ValueTypeBasisCoeff,
                ValueTypeBasisData,
                memorySpace>(numCellsInBlock,
                             transA.data(),
                             transB.data(),
                             strideA.data(),
                             strideB.data(),
                             strideC.data(),
                             mSizes.data(),
                             nSizes.data(),
                             kSizes.data(),
                             alpha,
                             fieldCellValues.begin(),
                             ldaSizes.data(),
                             B,
                             ldbSizes.data(),
                             beta,
                             C,
                             ldcSizes.data(),
                             linAlgOpContext);
            }

          for (size_type iCell = 0; iCell < numCellsInBlock; ++iCell)
            {
              for (size_type iDim = 0; iDim < dim; iDim++)
                BStartOffset[iDim] += kSizesTmp[iCell] * nSizesTmp[iCell] *
dim; cellLocalIdsOffset += numCellDofs[cellStartId + iCell];
            }
          quadValueContainerStartOffset +=
            numComponents * numCumulativeQuadCellsInBlock;
        }
    }

Assess i,j,k element by C[i*numvec*dim + j*numvec + k (numvec is the fastest)] cell->dim->numVec (i,j,k)

Here is the caller graph for this function:

◆ interpolate() [1/2]

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::interpolate	(	const Field< ValueTypeBasisCoeff, memorySpace > &	field,
		quadrature::QuadratureValuesContainer< ValueTypeUnion, memorySpace > &	quadValuesContainer
	)		const

override

Here is the call graph for this function:

◆ interpolate() [2/2]

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::interpolate	(	const linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &	vectorData,
		const BasisManager< ValueTypeBasisCoeff, memorySpace > &	basisManager,
		quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &	quadValuesContainer
	)		const

overridevirtual

— Storages ------—

Implements dftefe::basis::BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >.

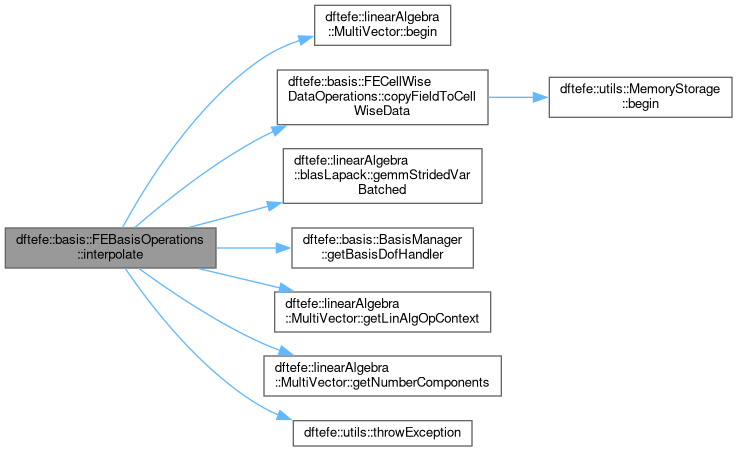

Here is the call graph for this function:

◆ interpolateWithBasisGradient()

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::interpolateWithBasisGradient	(	const linearAlgebra::MultiVector< ValueTypeBasisCoeff, memorySpace > &	vectorData,
		const BasisManager< ValueTypeBasisCoeff, memorySpace > &	basisManager,
		quadrature::QuadratureValuesContainer< linearAlgebra::blasLapack::scalar_type< ValueTypeBasisCoeff, ValueTypeBasisData >, memorySpace > &	quadValuesContainer
	)		const

overridevirtual

— Storages ------—

Implements dftefe::basis::BasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace >.

Here is the call graph for this function:

◆ reinit()

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

void dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::reinit	(	const size_type	maxCellBlockSize,
		const size_type	maxFieldBlockSize = `0`
	)

Here is the caller graph for this function:

Member Data Documentation

◆ d_feBasisDataStorage

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<const FEBasisDataStorage<ValueTypeBasisData, memorySpace> > dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_feBasisDataStorage

private

◆ d_maxCellBlock

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

size_type dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_maxCellBlock

private

◆ d_maxFieldBlock

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

size_type dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_maxFieldBlock

private

◆ d_tmpCellGradientsBlock

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisData, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpCellGradientsBlock

private

◆ d_tmpCellMatrixBlock

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpCellMatrixBlock

private

◆ d_tmpCellValuesBlock

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisData, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpCellValuesBlock

private

◆ d_tmpFieldCellValues

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpFieldCellValues

private

—temporary scratch spaces--—

◆ d_tmpFieldxScalN

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpFieldxScalN

private

◆ d_tmpFieldxVecN

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpFieldxVecN

private

◆ d_tmpJxWxScalN

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpJxWxScalN

private

◆ d_tmpJxWxVecN

template<typename ValueTypeBasisCoeff , typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

utils::MemoryStorage<ValueTypeBasisCoeff, memorySpace> dftefe::basis::FEBasisOperations< ValueTypeBasisCoeff, ValueTypeBasisData, memorySpace, dim >::d_tmpJxWxVecN

private

The documentation for this class was generated from the following files:

src/basis/FEBasisOperations.h
src/basis/FEBasisOperations.t.cpp

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ StorageBasis

◆ StorageUnion

◆ ValueTypeUnion

Constructor & Destructor Documentation

◆ FEBasisOperations()

◆ ~FEBasisOperations()

Member Function Documentation

◆ computeFEMatrices() [1/2]

◆ computeFEMatrices() [2/2]

◆ integrateWithBasisValues() [1/2]

◆ integrateWithBasisValues() [2/2]

◆ interpolate() [1/2]

◆ interpolate() [2/2]

◆ interpolateWithBasisGradient()

◆ reinit()

Member Data Documentation

◆ d_feBasisDataStorage

◆ d_maxCellBlock

◆ d_maxFieldBlock

◆ d_tmpCellGradientsBlock

◆ d_tmpCellMatrixBlock

◆ d_tmpCellValuesBlock

◆ d_tmpFieldCellValues

◆ d_tmpFieldxScalN

◆ d_tmpFieldxVecN

◆ d_tmpJxWxScalN

◆ d_tmpJxWxVecN
