Class to get the interface between Classical and Enrichment basis. It takes as the classical basis as input. The main functionalities of the class are: More...

#include <EnrichmentClassicalInterfaceSpherical.h>

Public Member Functions
	EnrichmentClassicalInterfaceSpherical (std::shared_ptr< const FEBasisDataStorage< ValueTypeBasisData, memorySpace > > cfeBasisDataStorageOverlapMatrix, std::shared_ptr< const FEBasisDataStorage< ValueTypeBasisData, memorySpace > > cfeBasisDataStorageRhs, std::shared_ptr< const atoms::AtomSphericalDataContainer > atomSphericalDataContainer, const double atomPartitionTolerance, const std::vector< std::string > &atomSymbolVec, const std::vector< utils::Point > &atomCoordinatesVec, const std::string fieldName, std::shared_ptr< linearAlgebra::LinAlgOpContext< memorySpace > > linAlgOpContext, const utils::mpi::MPIComm &comm)
	This Constructor for augmenting the orthogonalized EFE basis with classical FE basis. and then 1. Partition the enrichment dofs and 2. Form the orthogonalized basis by L2 projecting the pristine enrichment functions on the classicla FE basis. One can write any field \(u^h_{\alpha}(x) = \sum_{i=1}^{n_h}N_i^Cu^C_{\alpha,i} +\sum_{I=1}^{N_e}N_I^{O,u}u_{\alpha,I}\) where \(\alpha\) represents the number of discretized fields, C is the classical part and O is the orthogonalized enriched basis part, \(N_I\) represents the number of enrichment dofs and \(n_h\) represents the number of classical finite element dofs. The orthogonalized basis functions can be written as \(N^{O,u}_I(x) = N^{A,u}_I(x) − N^{B,u}_I(x)\), where \(N^{A,u}_I(x)\) represents the pristine enrichment functions and \(N^{B,u}_I(x)\f is the component of enrichment function along to the classical basis and can be written in terms of classical basis functions as \)@_fakenlN^{B,u}_I(x) = \sum^{n_h}_{l=1}c_{I,l}N^{C}_{l}(x)\f. Since the \(N^{O,u}_I(x)\)'s are orthogonal to classical basis, one can solve the equation \(M^{cc}.c = d\) where M is the discretized overlap matrix in classical FE basis and \(M^{cc}_{j,l} = \integral_{\omega}N^{C}_{l}(x)N^{C}_{j}(x)dx\) and d is the RHS written as \(d_{I,j,k} = \integral_{\omega}N^{A,u}_{i,j}(x)N^{C}_{k}(x)dx\) and \(c\) is the `basisInterfaceCoefficient` written as a multivector. More...

	EnrichmentClassicalInterfaceSpherical (std::shared_ptr< const TriangulationBase > triangulation, size_type feOrder, std::shared_ptr< const atoms::AtomSphericalDataContainer > atomSphericalDataContainer, const double atomPartitionTolerance, const std::vector< std::string > &atomSymbolVec, const std::vector< utils::Point > &atomCoordinatesVec, const std::string fieldName, const utils::mpi::MPIComm &comm)
	This Constructor for augmenting the EFE basis with classical FE basis. More...

	~EnrichmentClassicalInterfaceSpherical ()=default
	Destructor for the class. More...

std::shared_ptr< const atoms::AtomSphericalDataContainer >	getAtomSphericalDataContainer () const
	Function to return AtomSphericalDataContainerObject. More...

std::shared_ptr< const EnrichmentIdsPartition< dim > >	getEnrichmentIdsPartition () const
	Function to return EnrichmentIDsObject. More...

std::shared_ptr< const AtomIdsPartition< dim > >	getAtomIdsPartition () const

std::shared_ptr< const BasisManager< ValueTypeBasisData, memorySpace > >	getCFEBasisManager () const

std::shared_ptr< const BasisDofHandler >	getCFEBasisDofHandler () const

const std::unordered_map< global_size_type, utils::OptimizedIndexSet< size_type > > &	getClassicalComponentLocalIdsMap () const

const std::unordered_map< global_size_type, std::vector< ValueTypeBasisData > > &	getClassicalComponentCoeffMap () const

std::shared_ptr< linearAlgebra::LinAlgOpContext< memorySpace > >	getLinAlgOpContext () const

bool	isOrthogonalized () const

std::vector< std::string >	getAtomSymbolVec () const

std::vector< utils::Point >	getAtomCoordinatesVec () const

std::string	getFieldName () const

std::shared_ptr< const TriangulationBase >	getTriangulation () const

size_type	getFEOrder () const

global_size_type	getEnrichmentId (size_type cellId, size_type enrichmentCellLocalId) const
	The localid is determined by the storage pattern of the components of basisInterfaceCoeff multivector. The multivector has a storage pattern of [LocallyownedEnrichmentIds, GhostEnrichemntIds]. More...

size_type	getEnrichmentLocalId (global_size_type enrichmentId) const

size_type	getEnrichmentLocalId (size_type cellId, size_type enrichmentCellLocalId) const

Private Attributes
std::shared_ptr< const EnrichmentIdsPartition< dim > >	d_enrichmentIdsPartition

std::shared_ptr< const AtomIdsPartition< dim > >	d_atomIdsPartition

std::shared_ptr< const atoms::AtomSphericalDataContainer >	d_atomSphericalDataContainer

std::shared_ptr< const TriangulationBase >	d_triangulation

bool	d_isOrthogonalized

std::shared_ptr< const FEBasisDofHandler< ValueTypeBasisData, memorySpace, dim > >	d_cfeBasisDofHandler

std::shared_ptr< const FEBasisManager< ValueTypeBasisData, ValueTypeBasisData, memorySpace, dim > >	d_cfeBasisManager

const std::vector< std::string >	d_atomSymbolVec

const std::vector< utils::Point >	d_atomCoordinatesVec

const std::string	d_fieldName

std::vector< std::vector< global_size_type > >	d_overlappingEnrichmentIdsInCells

std::unordered_map< global_size_type, utils::OptimizedIndexSet< size_type > >	d_enrichmentIdToClassicalLocalIdMap

std::unordered_map< global_size_type, std::vector< ValueTypeBasisData > >	d_enrichmentIdToInterfaceCoeffMap

std::shared_ptr< linearAlgebra::LinAlgOpContext< memorySpace > >	d_linAlgOpContext

size_type	d_feOrder

Detailed Description

template<typename ValueTypeBasisData, utils::MemorySpace memorySpace, size_type dim>
class dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >

Class to get the interface between Classical and Enrichment basis. It takes as the classical basis as input. The main functionalities of the class are:

Partition the enrichment degrees of freedom based on a.) periodic/non-periodic BCs b.) Orthogonalized or pristine enrichment dofs needed.
Acts as input to the EFEBasisDofHandler the basic class for all EFE operations.
For Orthogonalized EFE it carries an extra set of c's from Mc = d obtained from classical dofs.
For periodic BC, there will be contributions to enrichment set from periodic images.

Constructor & Destructor Documentation

◆ EnrichmentClassicalInterfaceSpherical() [1/2]

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::EnrichmentClassicalInterfaceSpherical	(	std::shared_ptr< const FEBasisDataStorage< ValueTypeBasisData, memorySpace > >	cfeBasisDataStorageOverlapMatrix,
		std::shared_ptr< const FEBasisDataStorage< ValueTypeBasisData, memorySpace > >	cfeBasisDataStorageRhs,
		std::shared_ptr< const atoms::AtomSphericalDataContainer >	atomSphericalDataContainer,
		const double	atomPartitionTolerance,
		const std::vector< std::string > &	atomSymbolVec,
		const std::vector< utils::Point > &	atomCoordinatesVec,
		const std::string	fieldName,
		std::shared_ptr< linearAlgebra::LinAlgOpContext< memorySpace > >	linAlgOpContext,
		const utils::mpi::MPIComm &	comm
	)

This Constructor for augmenting the orthogonalized EFE basis with classical FE basis. and then 1. Partition the enrichment dofs and 2. Form the orthogonalized basis by L2 projecting the pristine enrichment functions on the classicla FE basis. One can write any field \(u^h_{\alpha}(x) = \sum_{i=1}^{n_h}N_i^Cu^C_{\alpha,i} +\sum_{I=1}^{N_e}N_I^{O,u}u_{\alpha,I}\) where \(\alpha\) represents the number of discretized fields, C is the classical part and O is the orthogonalized enriched basis part, \(N_I\) represents the number of enrichment dofs and \(n_h\) represents the number of classical finite element dofs. The orthogonalized basis functions can be written as \(N^{O,u}_I(x) = N^{A,u}_I(x) − N^{B,u}_I(x)\), where \(N^{A,u}_I(x)\) represents the pristine enrichment functions and \(N^{B,u}_I(x)\f is the component of enrichment function along to the classical basis and can be written in terms of classical basis functions as \)@_fakenlN^{B,u}_I(x) = \sum^{n_h}_{l=1}c_{I,l}N^{C}_{l}(x)\f. Since the \(N^{O,u}_I(x)\)'s are orthogonal to classical basis, one can solve the equation \(M^{cc}.c = d\) where M is the discretized overlap matrix in classical FE basis and \(M^{cc}_{j,l} = \integral_{\omega}N^{C}_{l}(x)N^{C}_{j}(x)dx\) and d is the RHS written as \(d_{I,j,k} = \integral_{\omega}N^{A,u}_{i,j}(x)N^{C}_{k}(x)dx\) and \(c\) is the basisInterfaceCoefficient written as a multivector.

Parameters

[in]	atomCoordinates	Vector of Coordinates of the atoms
[in]	atomPartitionTolerance	set the tolerance for partitioning the atomids
[in]	comm	MPI_Comm object if defined with MPI
[in]	cfeBasisDataStorageRhs	FEBasisDataStorage object for RHS \(d_{I}\)
[in]	cfeBasisDataStorageOverlapMatrix	FEBasisDataStorage object for the OverlapMatrix \(M^{cc}\)
[in]	linAlgOpContext	The linearAlgebraOperator context for solving the linear equation
[in]	fieldName	The fieldname of the enrichment function

Can also do via the M^(-1) route withot solving CG.

  linearAlgebra::MultiVector<ValueTypeBasisData, memorySpace> d(
        d_cfeBasisManager->getMPIPatternP2P(),
        linAlgOpContext,
        nTotalEnrichmentIds);
  d.setValue(0.0);

  FEBasisOperations<ValueTypeBasisData, ValueTypeBasisData, memorySpace,
  dim> cfeBasisOperations(cfeBasisDataStorageRhs,
  cellTimesNumVec);
  rootCout << "Begin creating integrateWithBasisValues\n";

Integrate this with different quarature rule. (i.e. adaptive for the enrichment functions) , inp will be in adaptive grid cfeBasisOperations.integrateWithBasisValues(quadValuesEnrichmentFunction, d_cfeBasisManager, d); rootCout << "End creating integrateWithBasisValues\n"; utils::throwException( cfeBasisDataStorageOverlapMatrix->getQuadratureRuleContainer() ->getQuadratureRuleAttributes() .getQuadratureFamily() == quadrature::QuadratureFamily::GLL, "The quadrature rule for integration of Classical FE dofs has to be GLL if Mc = d" "is not solved via a poisson solve. Contact developers if extra options are needed.");

std::shared_ptr<dftefe::linearAlgebra::OperatorContext<ValueTypeBasisData, ValueTypeBasisData, memorySpace>> MInvContext = std::make_shared<dftefe::basis::CFEOverlapInverseOpContextGLL<ValueTypeBasisData, ValueTypeBasisData, memorySpace, dim>> (*d_cfeBasisManager, cfeBasisDataStorageOverlapMatrix, linAlgOpContext);

MInvContext->apply(d,*basisInterfaceCoeff);

Here is the call graph for this function:

◆ EnrichmentClassicalInterfaceSpherical() [2/2]

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::EnrichmentClassicalInterfaceSpherical	(	std::shared_ptr< const TriangulationBase >	triangulation,
		size_type	feOrder,
		std::shared_ptr< const atoms::AtomSphericalDataContainer >	atomSphericalDataContainer,
		const double	atomPartitionTolerance,
		const std::vector< std::string > &	atomSymbolVec,
		const std::vector< utils::Point > &	atomCoordinatesVec,
		const std::string	fieldName,
		const utils::mpi::MPIComm &	comm
	)

This Constructor for augmenting the EFE basis with classical FE basis.

Parameters

[in]	atomCoordinates	Vector of Coordinates of the atoms
[in]	atomPartitionTolerance	set the tolerance for partitioning the atomids
[in]	comm	MPI_Comm object if defined with MPI
[in]	fieldName	The fieldname of the enrichment function

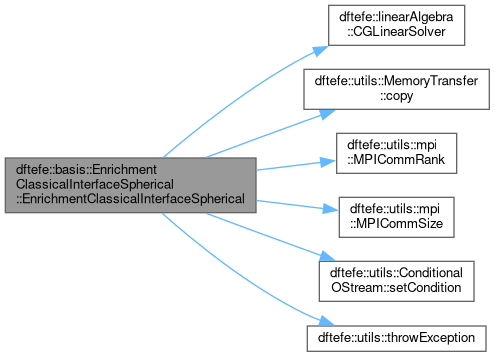

Here is the call graph for this function:

◆ ~EnrichmentClassicalInterfaceSpherical()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::~EnrichmentClassicalInterfaceSpherical ( )

default

Destructor for the class.

Member Function Documentation

◆ getAtomCoordinatesVec()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::vector< utils::Point > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getAtomCoordinatesVec

◆ getAtomIdsPartition()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const AtomIdsPartition< dim > > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getAtomIdsPartition

◆ getAtomSphericalDataContainer()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const atoms::AtomSphericalDataContainer > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getAtomSphericalDataContainer

Function to return AtomSphericalDataContainerObject.

◆ getAtomSymbolVec()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::vector< std::string > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getAtomSymbolVec

◆ getCFEBasisDofHandler()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const BasisDofHandler > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getCFEBasisDofHandler

Here is the call graph for this function:

◆ getCFEBasisManager()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const BasisManager< ValueTypeBasisData, memorySpace > > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getCFEBasisManager

Here is the call graph for this function:

◆ getClassicalComponentCoeffMap()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

const std::unordered_map< global_size_type, std::vector< ValueTypeBasisData > > & dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getClassicalComponentCoeffMap

Here is the call graph for this function:

◆ getClassicalComponentLocalIdsMap()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

const std::unordered_map< global_size_type, utils::OptimizedIndexSet< size_type > > & dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getClassicalComponentLocalIdsMap

Here is the call graph for this function:

◆ getEnrichmentId()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

global_size_type dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getEnrichmentId	(	size_type	cellId,
		size_type	enrichmentCellLocalId
	)		const

The localid is determined by the storage pattern of the components of basisInterfaceCoeff multivector. The multivector has a storage pattern of [LocallyownedEnrichmentIds, GhostEnrichemntIds].

Here is the call graph for this function:

◆ getEnrichmentIdsPartition()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const EnrichmentIdsPartition< dim > > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getEnrichmentIdsPartition

Function to return EnrichmentIDsObject.

Here is the caller graph for this function:

◆ getEnrichmentLocalId() [1/2]

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

size_type dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getEnrichmentLocalId ( global_size_type enrichmentId ) const

Here is the call graph for this function:

◆ getEnrichmentLocalId() [2/2]

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

size_type dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getEnrichmentLocalId	(	size_type	cellId,
		size_type	enrichmentCellLocalId
	)		const

Here is the call graph for this function:

◆ getFEOrder()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

size_type dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getFEOrder

◆ getFieldName()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::string dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getFieldName

◆ getLinAlgOpContext()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< linearAlgebra::LinAlgOpContext< memorySpace > > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getLinAlgOpContext

Here is the call graph for this function:

◆ getTriangulation()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const TriangulationBase > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::getTriangulation

◆ isOrthogonalized()

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

bool dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::isOrthogonalized

Member Data Documentation

◆ d_atomCoordinatesVec

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

const std::vector<utils::Point> dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_atomCoordinatesVec

private

◆ d_atomIdsPartition

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<const AtomIdsPartition<dim> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_atomIdsPartition

private

◆ d_atomSphericalDataContainer

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<const atoms::AtomSphericalDataContainer> dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_atomSphericalDataContainer

private

◆ d_atomSymbolVec

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

const std::vector<std::string> dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_atomSymbolVec

private

◆ d_cfeBasisDofHandler

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr< const FEBasisDofHandler<ValueTypeBasisData, memorySpace, dim> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_cfeBasisDofHandler

private

◆ d_cfeBasisManager

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<const FEBasisManager<ValueTypeBasisData, ValueTypeBasisData, memorySpace, dim> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_cfeBasisManager

private

◆ d_enrichmentIdsPartition

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<const EnrichmentIdsPartition<dim> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_enrichmentIdsPartition

private

◆ d_enrichmentIdToClassicalLocalIdMap

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::unordered_map<global_size_type, utils::OptimizedIndexSet<size_type> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_enrichmentIdToClassicalLocalIdMap

private

◆ d_enrichmentIdToInterfaceCoeffMap

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::unordered_map<global_size_type, std::vector<ValueTypeBasisData> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_enrichmentIdToInterfaceCoeffMap

private

◆ d_feOrder

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

size_type dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_feOrder

private

◆ d_fieldName

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

const std::string dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_fieldName

private

◆ d_isOrthogonalized

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

bool dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_isOrthogonalized

private

◆ d_linAlgOpContext

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<linearAlgebra::LinAlgOpContext<memorySpace> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_linAlgOpContext

private

◆ d_overlappingEnrichmentIdsInCells

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::vector<std::vector<global_size_type> > dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_overlappingEnrichmentIdsInCells

private

◆ d_triangulation

template<typename ValueTypeBasisData , utils::MemorySpace memorySpace, size_type dim>

std::shared_ptr<const TriangulationBase> dftefe::basis::EnrichmentClassicalInterfaceSpherical< ValueTypeBasisData, memorySpace, dim >::d_triangulation

private

The documentation for this class was generated from the following files:

src/basis/EnrichmentClassicalInterfaceSpherical.h
src/basis/EnrichmentClassicalInterfaceSpherical.t.cpp

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EnrichmentClassicalInterfaceSpherical() [1/2]

◆ EnrichmentClassicalInterfaceSpherical() [2/2]

◆ ~EnrichmentClassicalInterfaceSpherical()

Member Function Documentation

◆ getAtomCoordinatesVec()

◆ getAtomIdsPartition()

◆ getAtomSphericalDataContainer()

◆ getAtomSymbolVec()

◆ getCFEBasisDofHandler()

◆ getCFEBasisManager()

◆ getClassicalComponentCoeffMap()

◆ getClassicalComponentLocalIdsMap()

◆ getEnrichmentId()

◆ getEnrichmentIdsPartition()

◆ getEnrichmentLocalId() [1/2]

◆ getEnrichmentLocalId() [2/2]

◆ getFEOrder()

◆ getFieldName()

◆ getLinAlgOpContext()

◆ getTriangulation()

◆ isOrthogonalized()

Member Data Documentation

◆ d_atomCoordinatesVec

◆ d_atomIdsPartition

◆ d_atomSphericalDataContainer

◆ d_atomSymbolVec

◆ d_cfeBasisDofHandler

◆ d_cfeBasisManager

◆ d_enrichmentIdsPartition

◆ d_enrichmentIdToClassicalLocalIdMap

◆ d_enrichmentIdToInterfaceCoeffMap

◆ d_feOrder

◆ d_fieldName

◆ d_isOrthogonalized

◆ d_linAlgOpContext

◆ d_overlappingEnrichmentIdsInCells

◆ d_triangulation
